Carrier System
External Wall: 40601.5mm Anti-rust Welded Frame
Internal Wall: 40601.5mm Anti-rust Welded Frame
Roof: 501002.5mm Special Truss System Welded
Floor: 501002.5mm Chassis System Welded
Facade Cladding System and Insulation
External Facade: 40mm Sinus Panel - Polyurethane Density 40 (±2) kg/m³ (Anthracite Grey) Boardex facade cladding + Mesh + External facade plaster + Minarelli Plaster + Paint Local Thermowood Natural Wood Cladding Application
External Facade Insulation: 40mm Polyurethane Density 40 (±2) kg/m³ + 30mm Spray Polyurethane Foam + 40mm Mineral Wool - Fire Resistance Class 1A Thermal Conductivity 0.040 W/mK
Internal Facade: Plasterboard, Plaster, Plaster Primer, and Silicone Interior Paint + Local Wood Cladding Application
Internal Facade Insulation: 50mm Mineral Wool - Fire Resistance Class 1A Thermal Conductivity 0.040 W/mK
Roof Cladding System and Insulation
Roof Cladding: 3 Ribbed Sandwich Roof Panel
Polyurethane Density: 40 (±2) kg/m³
Roof Insulation: 40mm Polyurethane
Density: 40 (±2) kg/m³
Additional Roof Insulation: 30mm Spray Polyurethane Foam + 100mm Glass Wool - Density: 40 (±2) kg/m³
Doors and Windows
External Door: Water-resistant Aluminum Steel Door
Internal Doors: Melamine Surface Panel Door

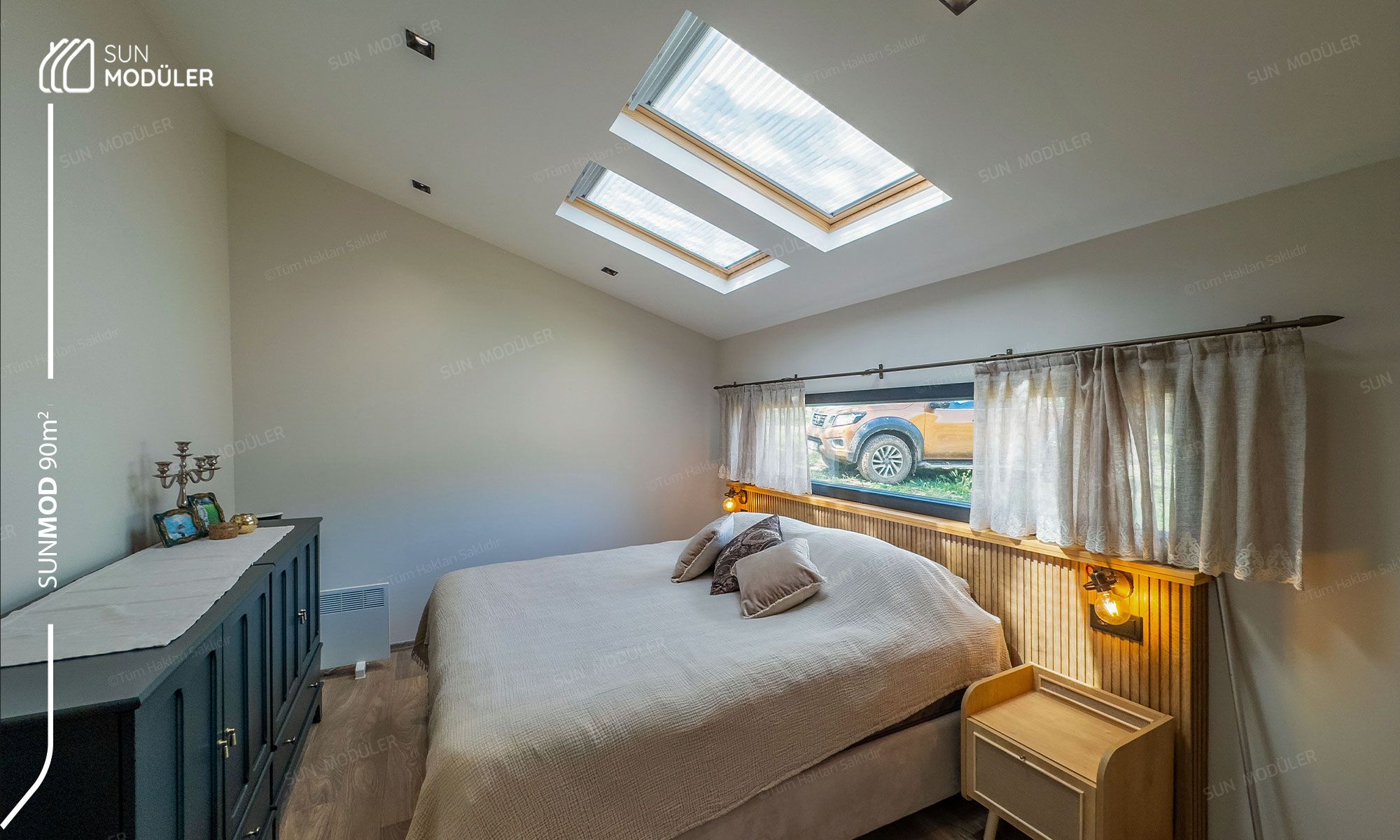

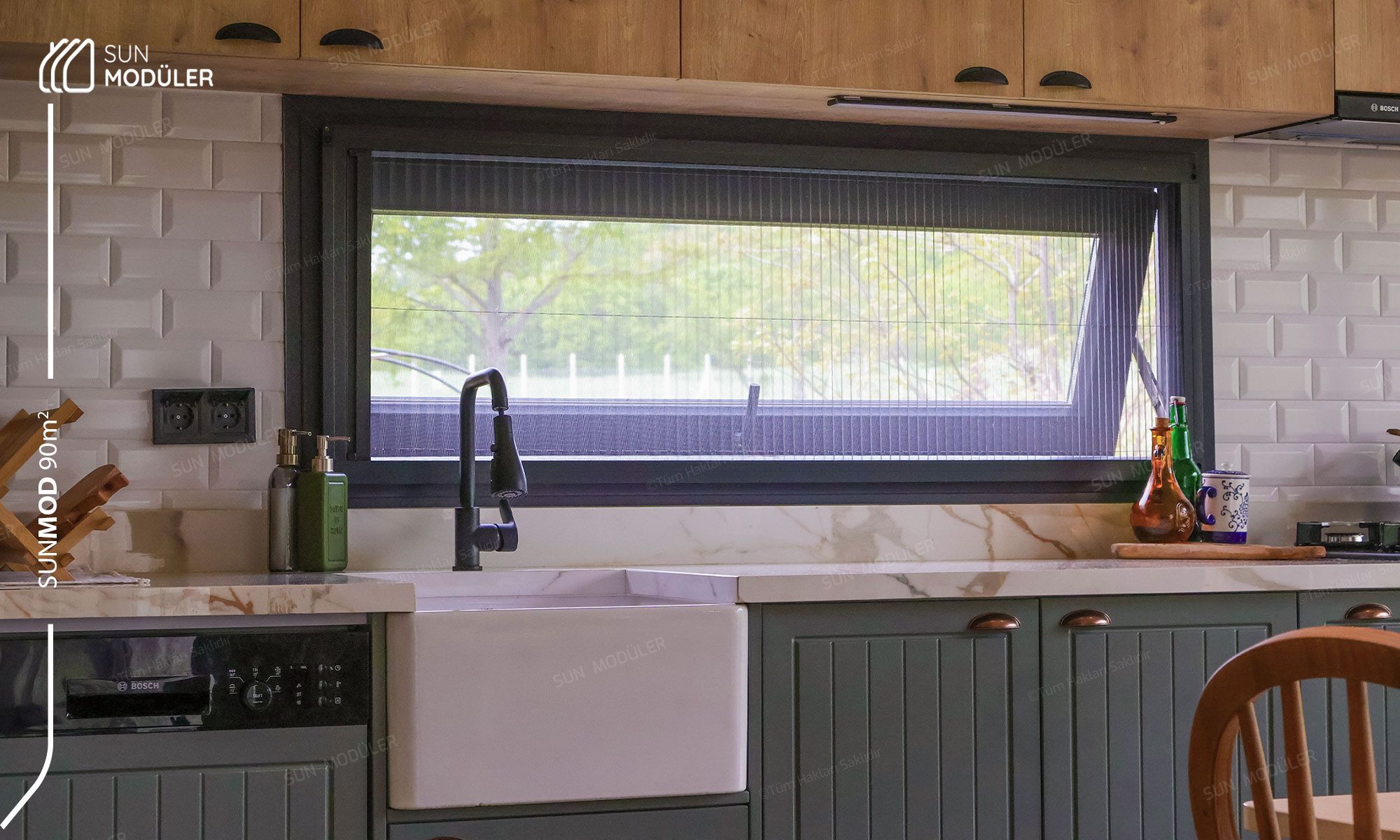

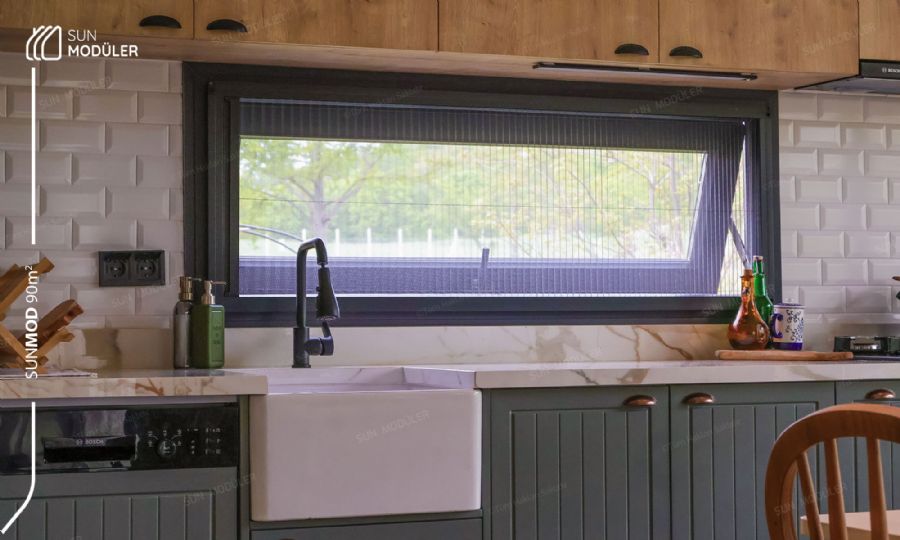

Windows: Anthracite Grey Self-casing PVC Window
Glass: 4+16+4 Insulated Glass
External Facade Accessories
Aluminum Composite Panel
