Carrier System
Walls: 60 mm Steel Frame
Facade Cladding System and Insulation

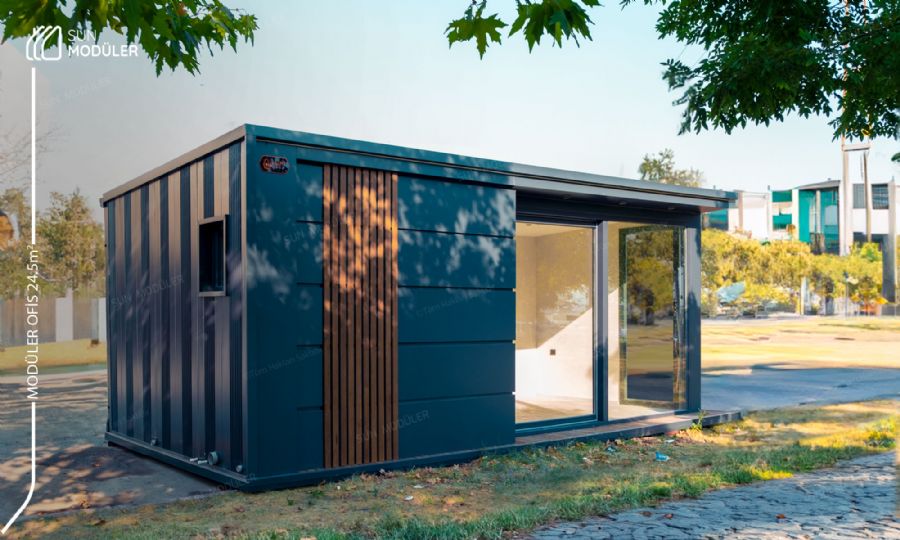

External Facade: Aluminum Composite Cladding, Thermowood Natural Wood Cladding Application
External Facade Insulation: 50mm Mineral Wool, Fire Resistance Class 1A, Thermal Conductivity = 0.037 W/mK

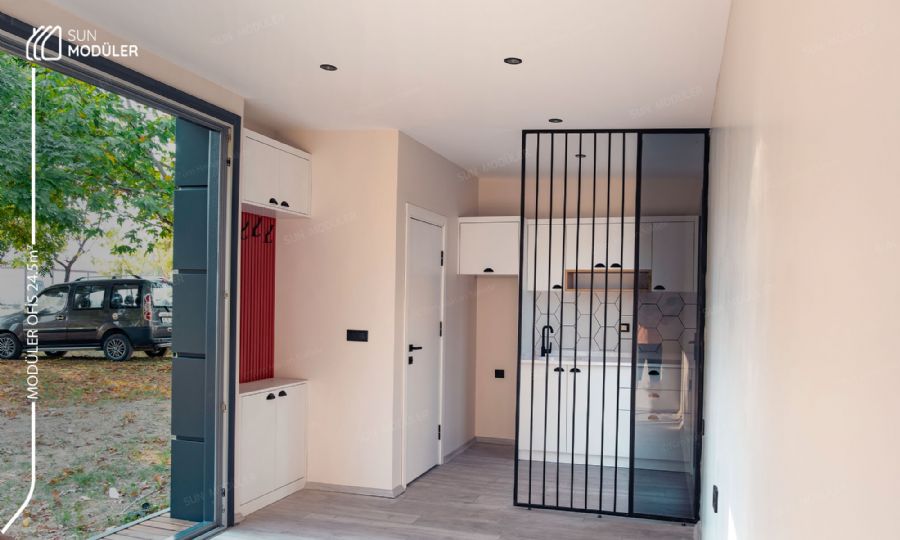

Internal Facade: Plasterboard, Plaster, Plaster Primer, and Silicone Interior Paint, Local Wood Cladding Application
Internal Facade Insulation: 50mm Mineral Wool, Fire Resistance Class 1A, Thermal Conductivity 0.040 W/mK
Roof Cladding System and Insulation
Roof Cladding: 3 Ribbed Sandwich Roof Panel, Polyurethane Density 40 (±2) kg/m³
Roof Insulation: 40mm Polyurethane, Density 40 (±2) kg/m³
Additional Roof Insulation: 50mm Mineral Wool, Fire Resistance Class 1A, Thermal Conductivity 0.040 W/mK
Doors and Windows
Internal Doors: Melamine Surface Panel Door
Windows: Inova Series Sliding PVC Window
Glass: 4+16+4 Insulated Glass
External Facade Accessories
Aluminum Composite Panel
